| Model No. | MF8101C |
|---|---|
| Product Type | 3 × white SMD + 33 × yellow SMD |
| Maximum Output | 57 lm |
| Lighting Modes | 3-white-SMD light / 9-yellow-SMD flash / 24-yellow-SMD flash / 33-yellow-SMD flash / 24-yellow-SMD marquee |
| Battery | Built-in 650mAh polymer battery |
| Runtime | 6–15 hours |
| Charging Time | 2–3 hours |
| Charging Port | Type-C |
| Product Size | 112 × 101 × 33 mm |
| Product Weight | 122 g |
| Housing Material | ABS |

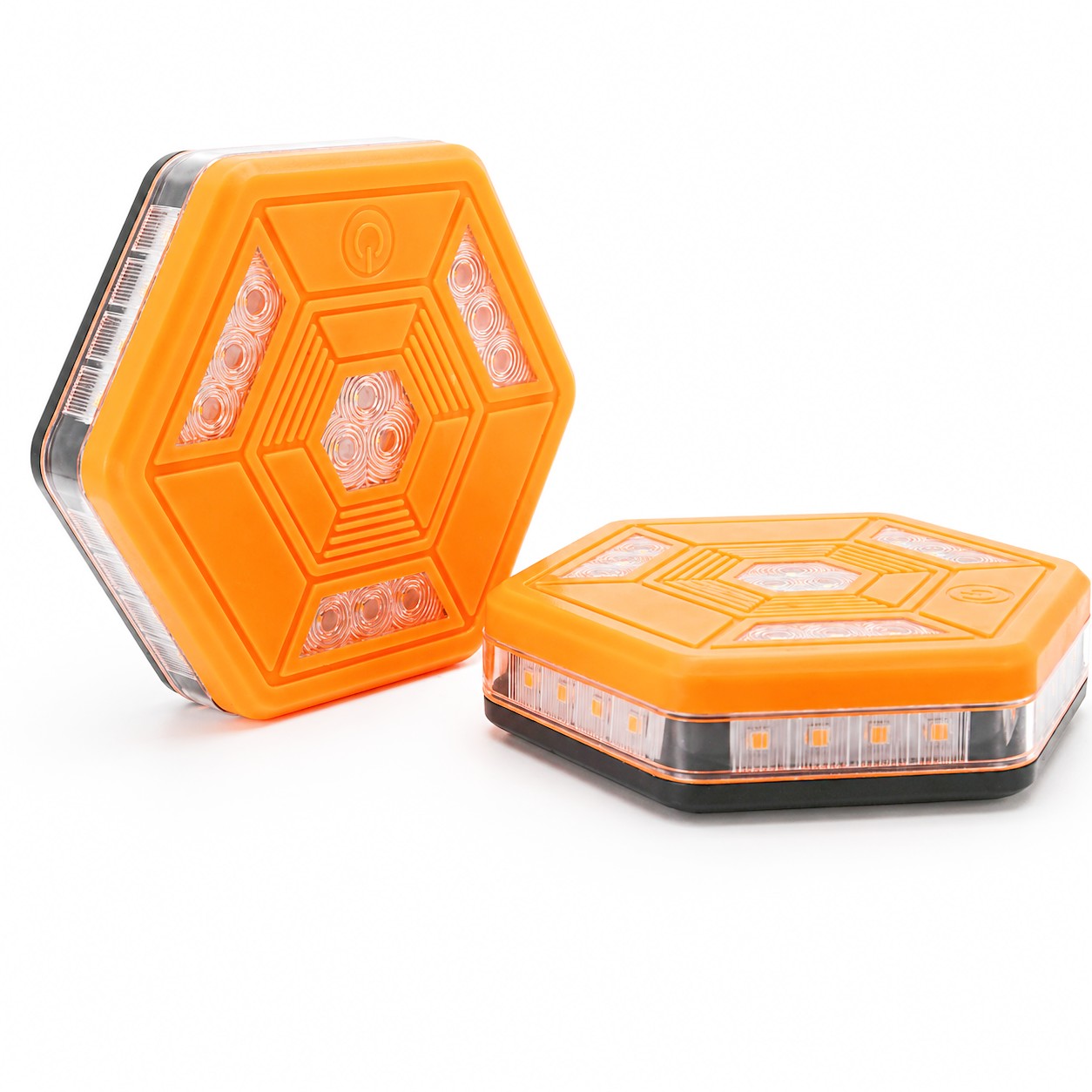

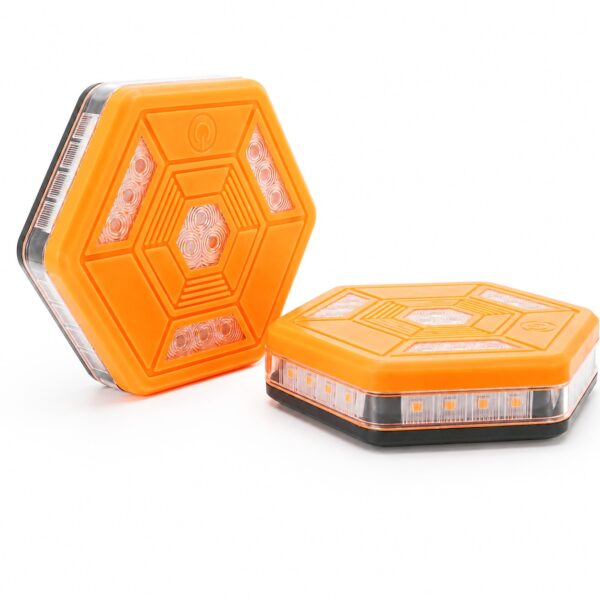

The MF8101C is a compact hexagonal rechargeable magnetic LED warning light designed for temporary roadside marking, vehicle safety kits, maintenance areas and worksite visibility. It combines three white SMD LEDs with thirty-three yellow SMD LEDs, providing one white illumination mode and four distinct yellow warning patterns in a low-profile magnetic housing.
The operating sequence includes a three-white-SMD light, 9-yellow-SMD flash, 24-yellow-SMD flash, full 33-yellow-SMD flash and a 24-yellow-SMD marquee pattern. The white mode supports close-range equipment checks, while the different yellow patterns allow users to select a visual warning signal suited to temporary traffic, maintenance or equipment-marking requirements.

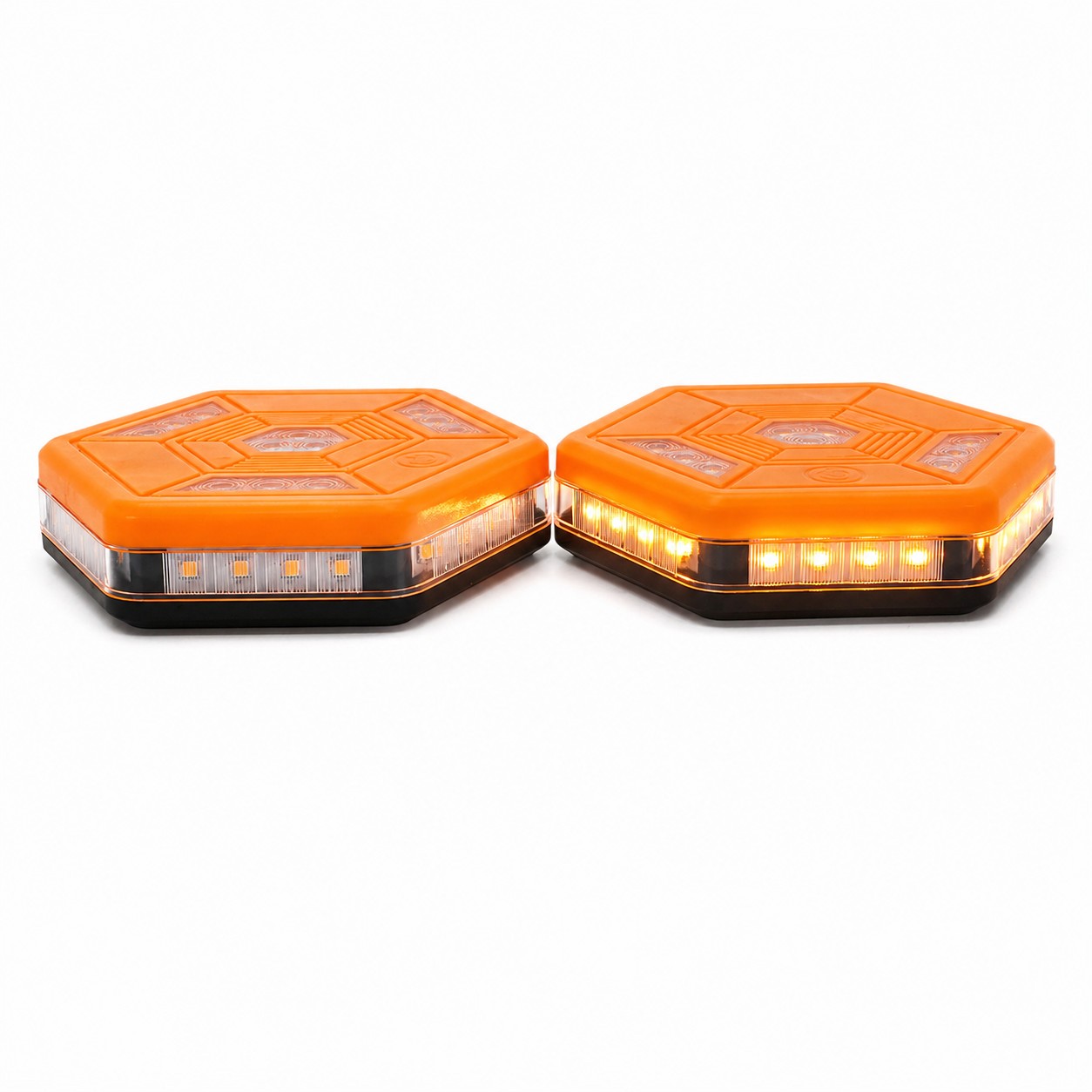

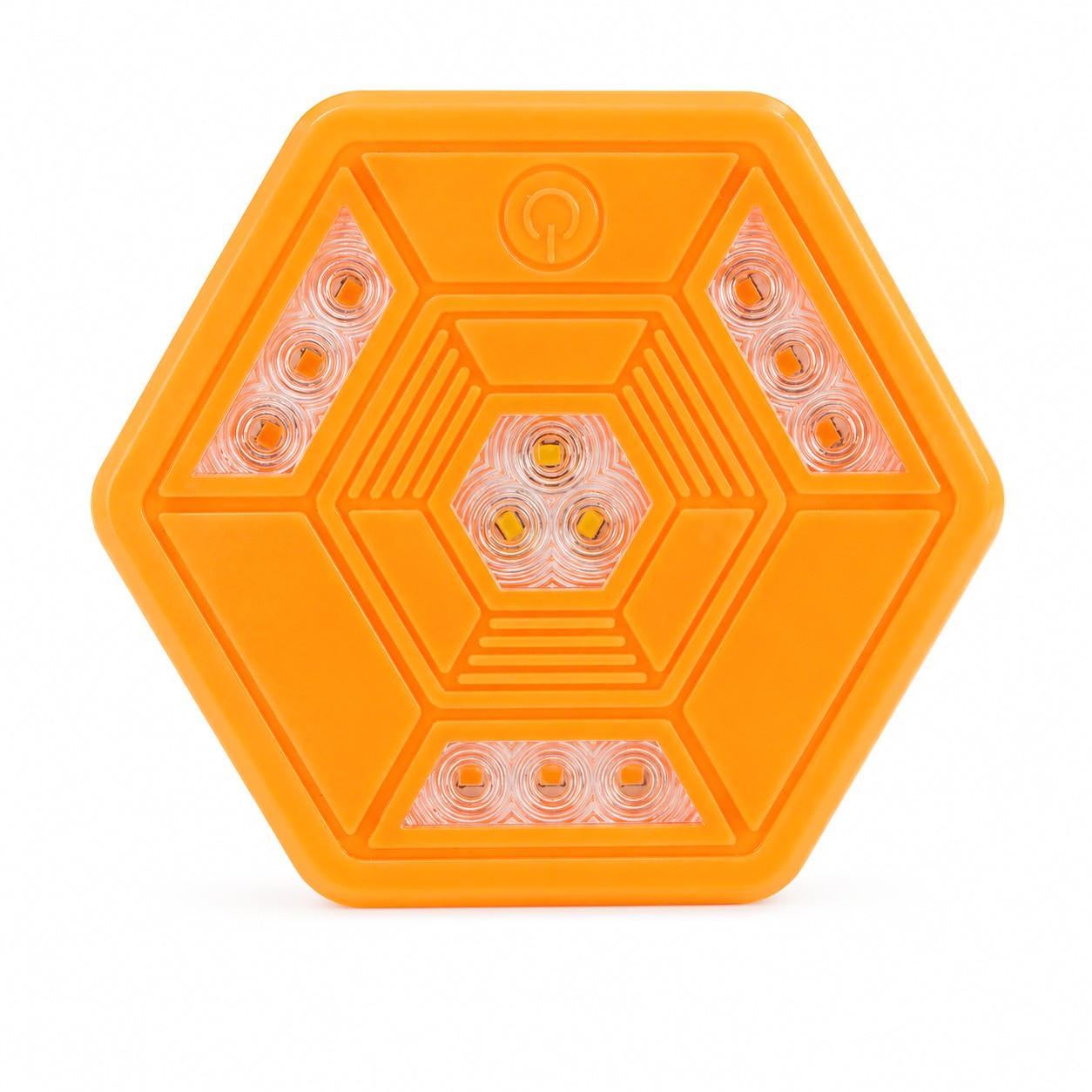

The front panel uses a hexagonal layout with LED sections positioned around the face and additional yellow SMD LEDs distributed along the surrounding side ring. This configuration directs warning light across multiple horizontal angles while maintaining a compact 112 × 101 × 33 mm housing.

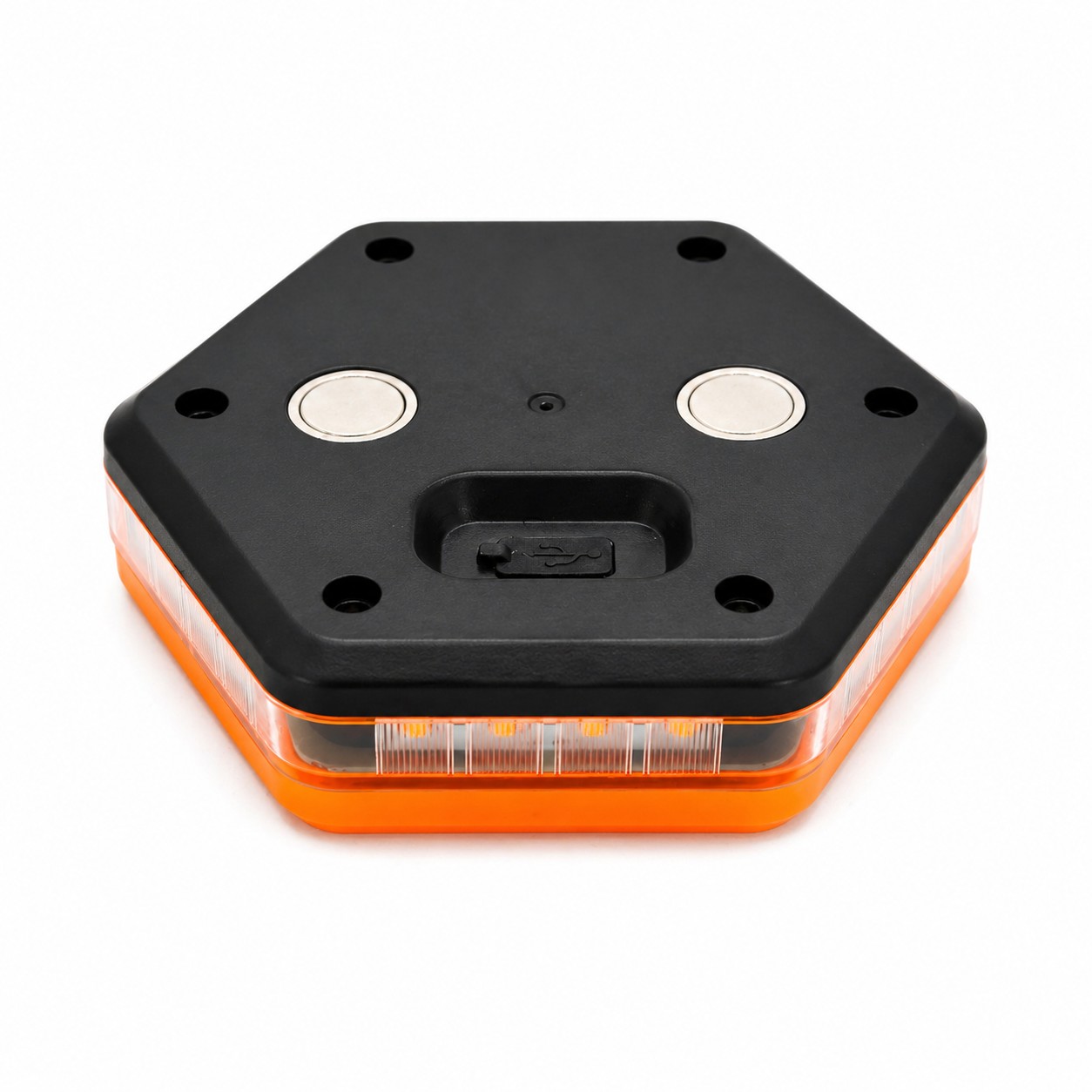

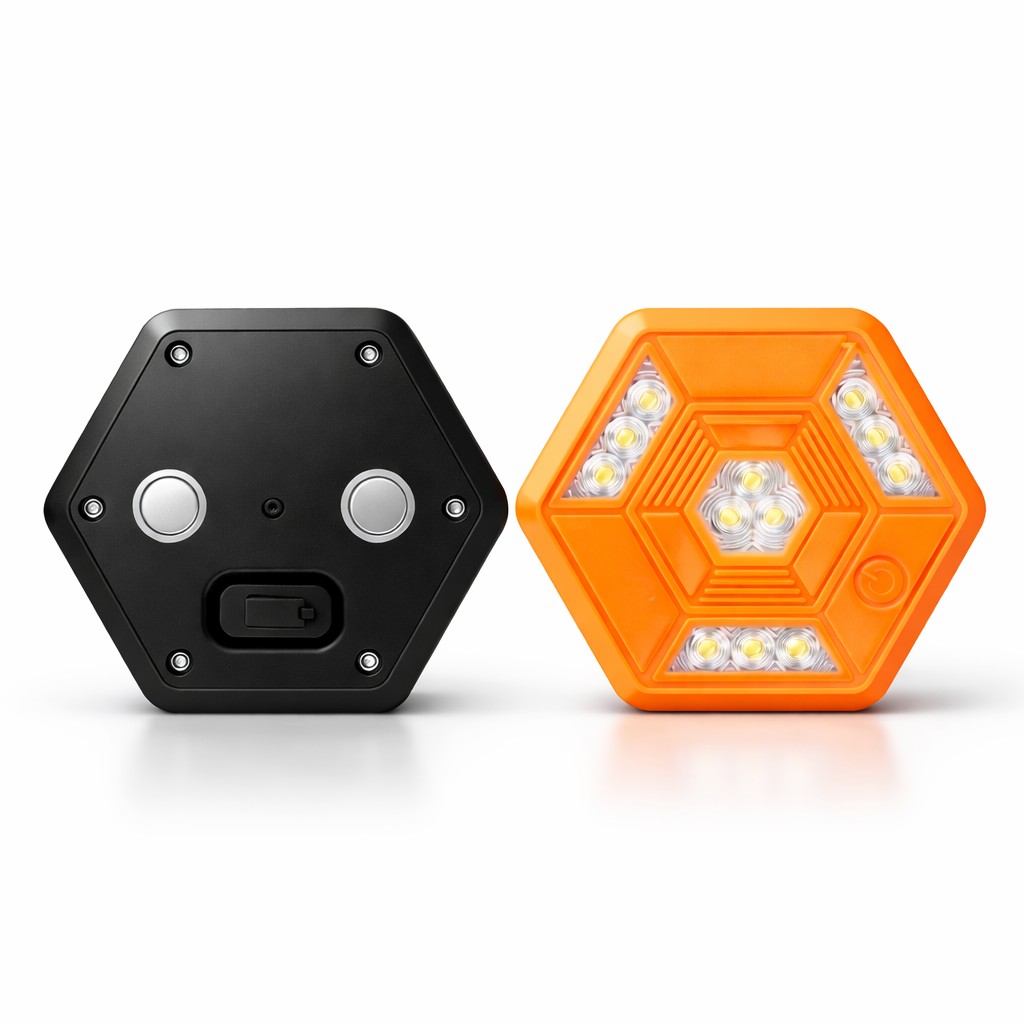

Two magnets are integrated into the rear of the light, allowing it to attach directly to compatible metal surfaces. The magnetic structure supports hands-free placement on vehicles, machinery, steel cabinets and other suitable mounting points without requiring a separate stand or bracket.
A built-in 650mAh polymer battery provides a stated working time of 6–15 hours, depending on the selected mode. Charging takes approximately 2–3 hours through the Type-C port. The rechargeable design supports repeated deployment without replacing disposable batteries.
For OEM and wholesale enquiries, submit your logo, packaging, order quantity and market requirements. Contact MFOPTO for pricing and sourcing information for the MF8101C hexagonal rechargeable magnetic LED warning light.
